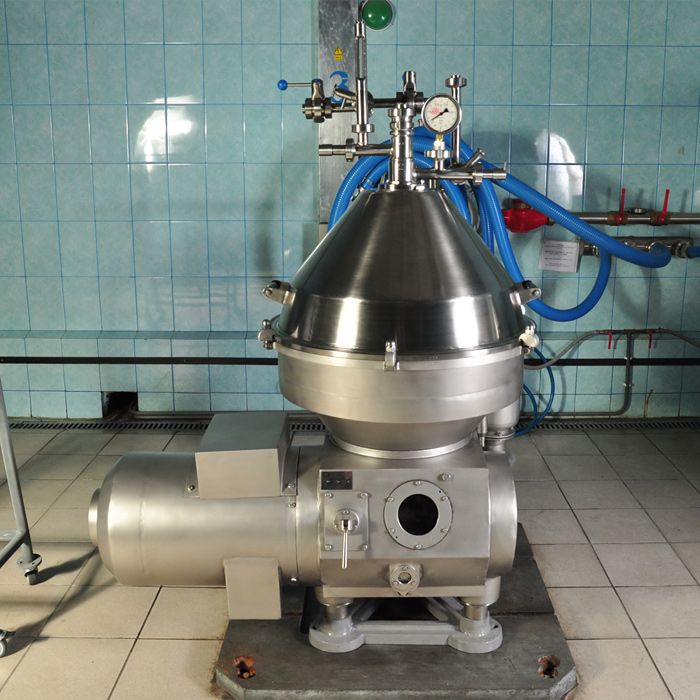

Cream separator J5-Sunrise-5 with automatic periodic sludge discharge is designed for continuous separation of whole milk into cream and skim milk with simultaneous cleaning from mechanic admixtures and mucus. Separator can be used for milk standartization and clarification.
| Capacity, l/h | 5000 |
|---|---|
| Power, kW | 11 |
| Overall dimensions, mm | |
| length | 1230 |
| width | 900 |
| height | 1720 |
| Rotation frequency of the bowl, C-1 (rev/min) | 108,3±2 (6500±120) |
| Adjustment of volumetric ratio of cream to skim milk | from 1:4 up to 1:12 |
| Pressure at the outlet of skim milk, MPa (ati) | 0,4 (4) |
| Pressure of buffer water, MPa (ati) | 0,24 (2,5) |
| Weight of separator, kg | 1050 |
